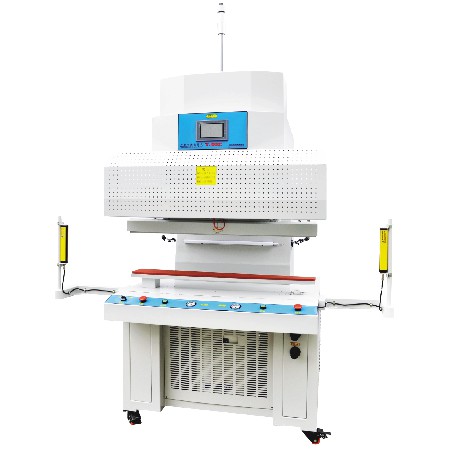

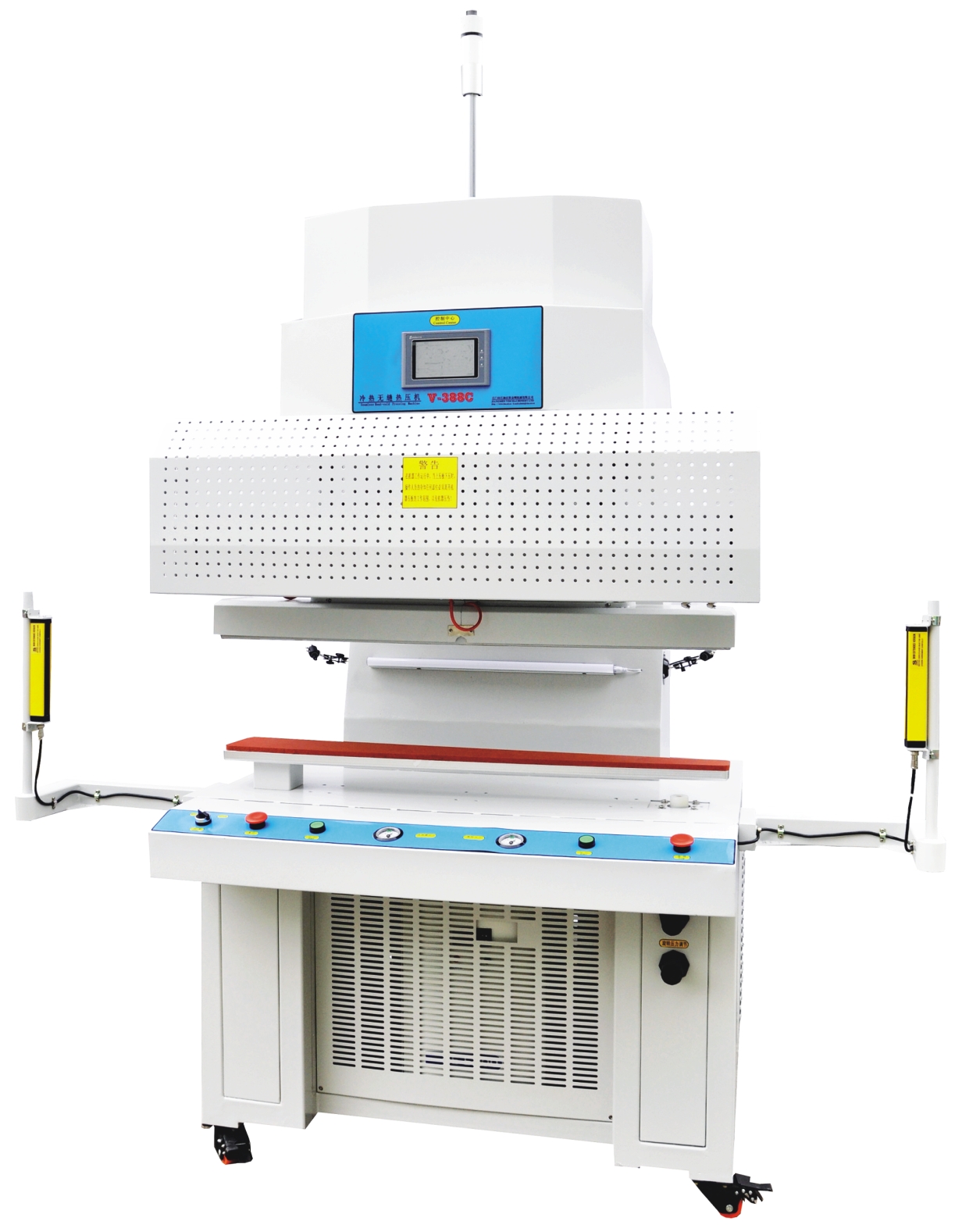

Hot and cold seamless hot press V-388C
2020-11-24 476
產品參數/Product parameters
型號 | Model | V-388C |
電壓 | Voltage | AC220V 50/60Hz |
額定功率 | Rating Efficiency | 4.5KW |
壓縮空氣 | Air Supply | 0.35-0.5MPa |
最高加熱溫度 | Maximum Temperature | 250℃ |
冷卻溫度 | Cool Temperature | 0℃ |
加壓時間 | Pressing Time | 1-120s |
熱壓板面積 | Pressing Area | 1000mm×140mm |
升降行程 | Up and Down Travel | 200mm |
外型尺寸 | Exterior size | 1540mm×950mm×2270mm |
凈重 | Net weight | 450kg |
V-388C性能參數
1) . 電壓：AC ～220 V 50HZ
2) . 總額定功率：4500W 額定功率：4000W
3) . 上加熱板功率：2600W
4) . 氣壓：0.35～0.5 MPa
5) . 熱溫度：常溫～250 ℃
6) . 冷溫度：常溫~0 ℃
7) . 加壓時間：1～120秒可調。
8) . 工作面積：1000mm×140mm
9) . 外觀尺寸：1540mm（L）×950mm（W）×2270 mm（H）。
10) . 機身重量：450 kg
當產品圖片和產品參數與實際產品不一致時，以實際產品為準，對此不另行通知
When the product picture and product parameters are inconsistent with the actual product, the actual product shall prevail, without further notice
-
