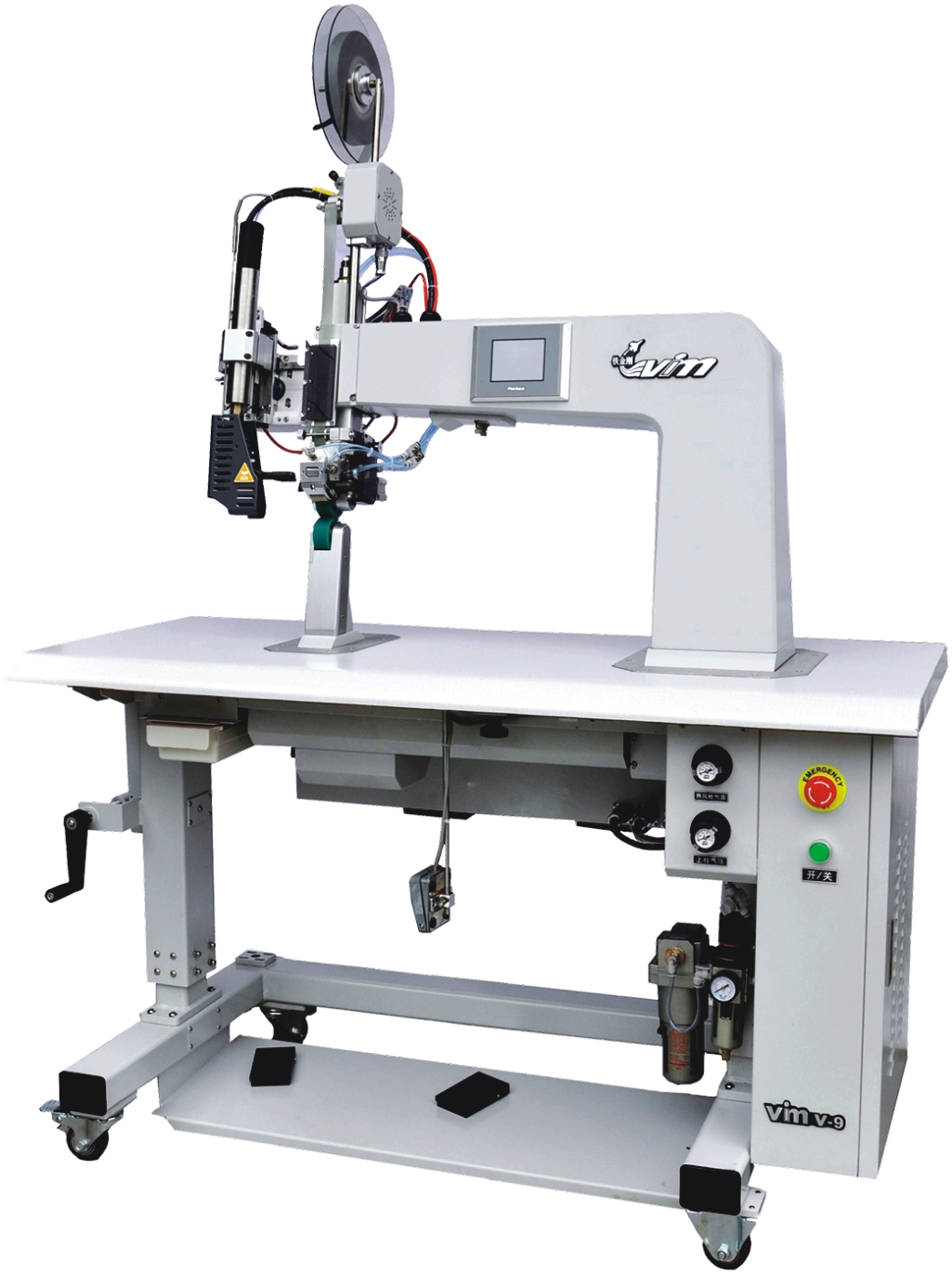

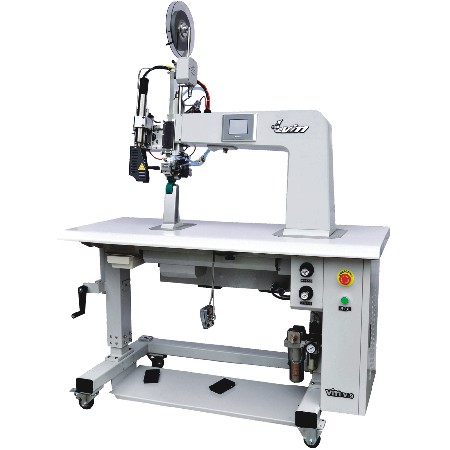

Hot air seam sealing machine V-9
2020-11-24 757
產品參數/Product parameters
型號 | Model | V-9(差速） 電壓 Voltage _ AC220V 50/60Hz |
電壓 | Voltage | 3.3KW |
額定功率 | Rating Efficiency | 0.35-0.5MPa |
壓縮空氣 | Air Supply | 1-25m/min |
熱合速度 | Heat Sealing Speed | 700℃ |
風嘴最高溫度 | Maximum Temperature of Nozzle | ?50x25mm |
上下壓輪寬度 | Pinch roller Width | 1300mm×600mm×180mm |
外型尺寸 | Exterior size | 180kg |
凈重 | Net weight | 8-25mm |
可選滾輪 | Optional Size of Roller | V-9(差速） 電壓 Voltage _ AC220V 50/60Hz |
V-9性能參數
A. 電壓：AC 220V 50～60Hz
B.額定功率：3300W特殊發熱絲。
C. 熱力控制：無段可調常溫0～700℃
D. 壓縮空氣：0.35~0.5兆帕
E. 速度：1～25m/min無段變速（標準），2～25m/min，選擇訂購使用。
F. 槍嘴氣壓：無段可調0.03～0.3MPa（氣壓表顯示）。
G. 槍嘴寬度：標準扁口型23mm，
H. 上壓輪壓力：無段可調節器0～1MPa（氣壓表顯示）。
I. 上下輪寬度：光面25mm標準型，其它如鋼輪、直紋等可自由選擇訂購。
J. 可吹膠帶寬度：標準型14mm～22mm，其它寬度可根據客戶要求訂做。
K. 上壓輪行程距離：18～25mm
L. 縫合跳漏防止：在熱風槍向內運動與滾輪啟動及滾輪停止與熱風槍向外運動之間均有可供利用之調節以防止封口之跳漏。
當產品圖片和產品參數與實際產品不一致時，以實際產品為準，對此不另行通知
When the product picture and product parameters are inconsistent with the actual product, the actual product shall prevail, without further notice
-
